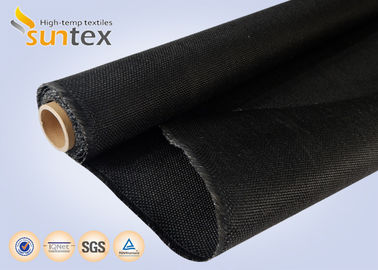

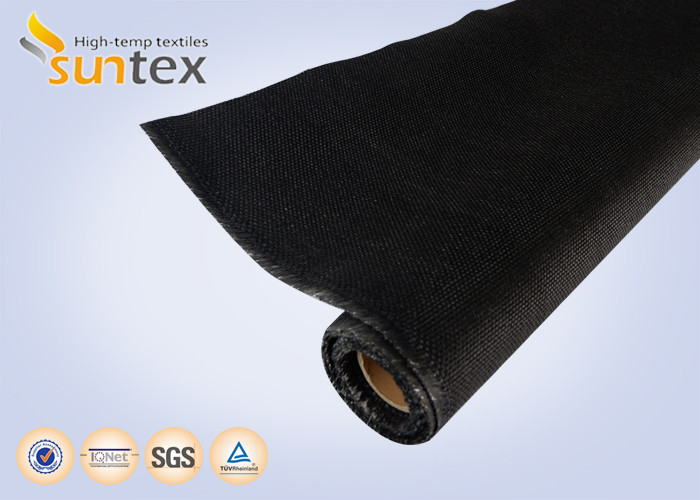

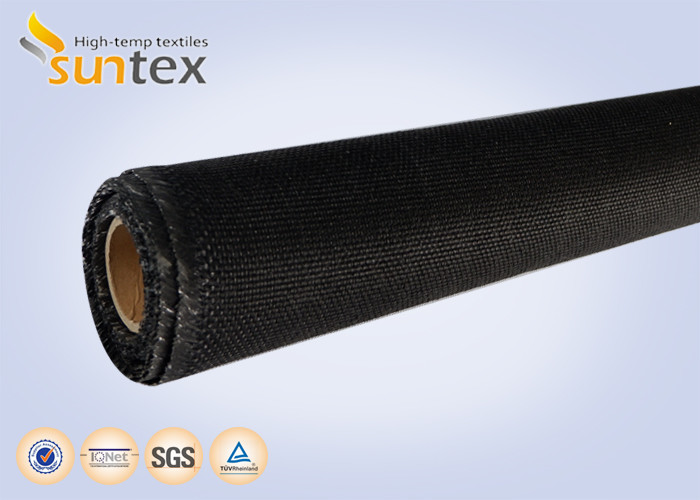

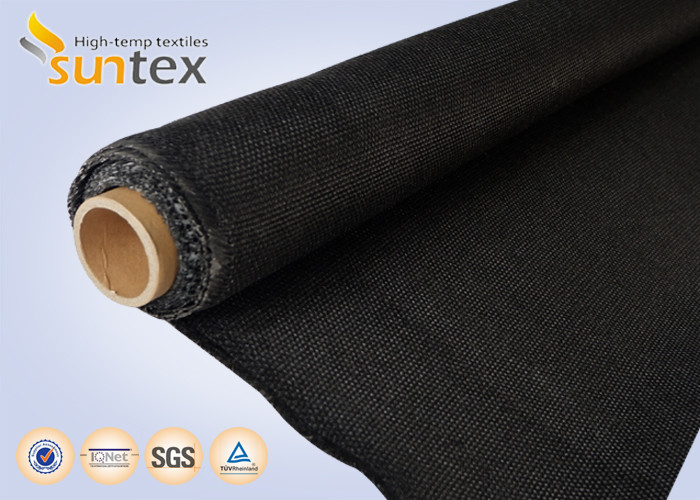

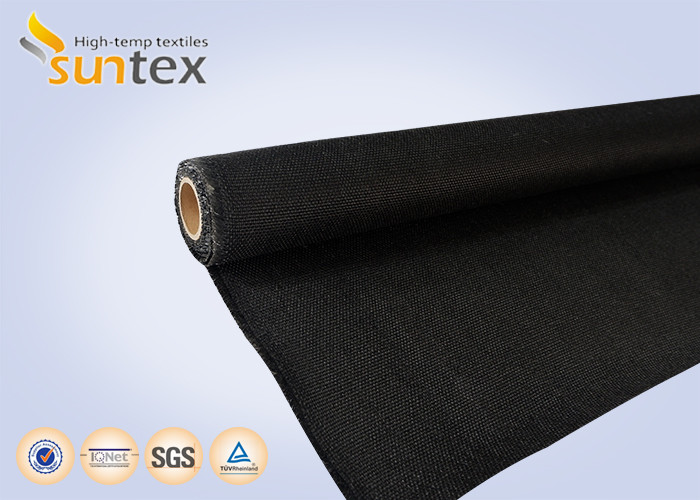

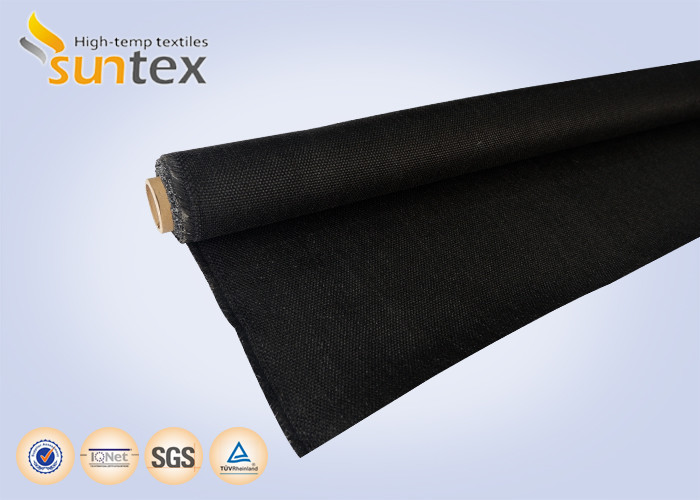

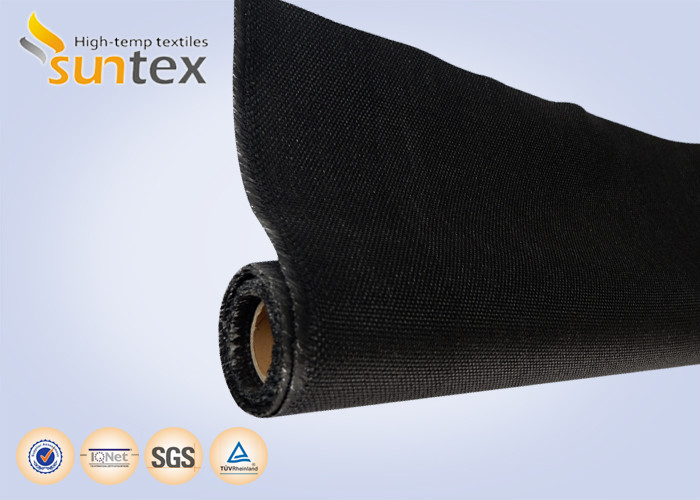

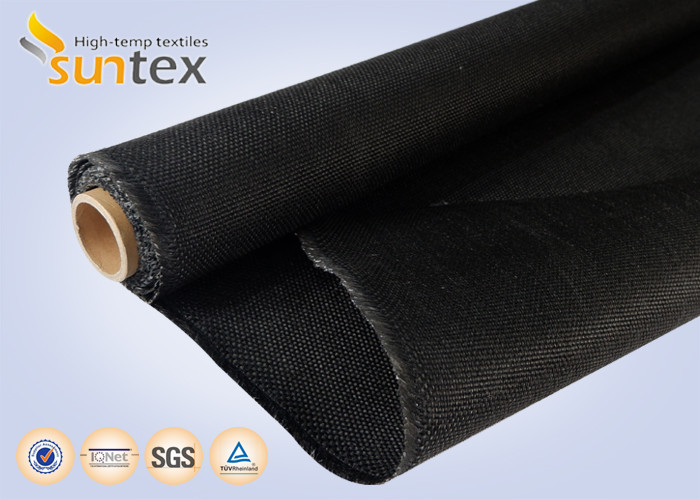

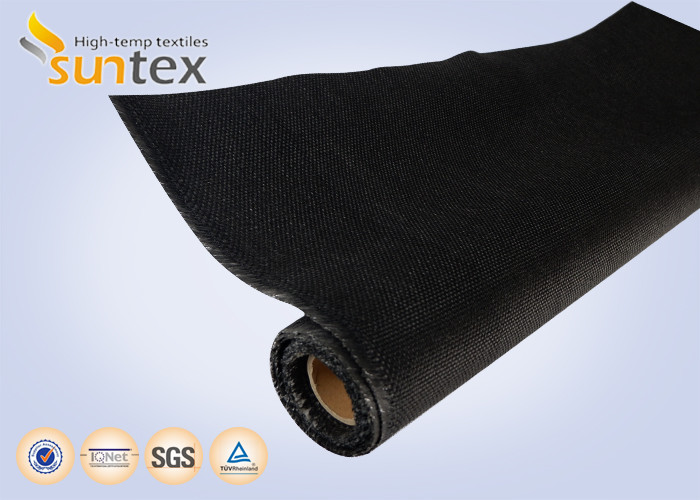

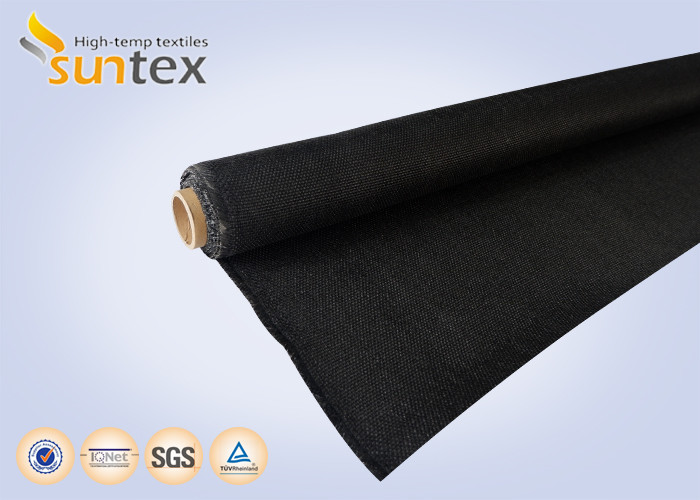

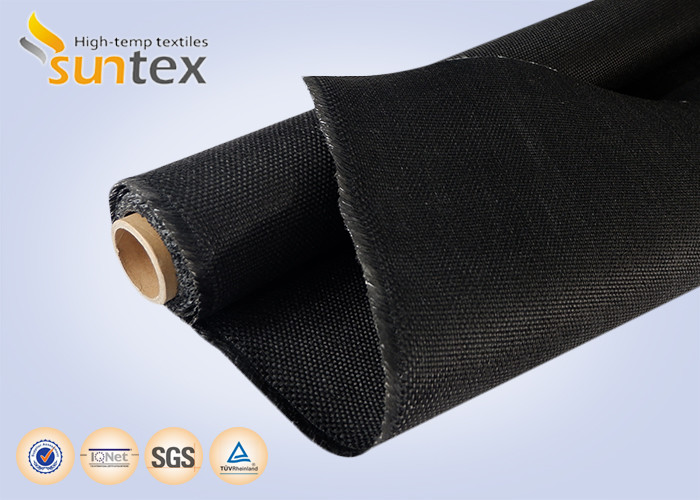

Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant

  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
  • Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant
مكان المنشأ الصين
اسم العلامة التجارية SUNTEX
رقم الموديل GF430P-PU21A-2006
الحد الأدنى لكمية 500 متر
الأسعار FOB Shanghai 2.3-5.6 $/sqm
تفاصيل التغليف كل لفة في الكرتون ، عدة كرتون على المنصات
وقت التسليم 5-15 أيام العمل
شروط الدفع T/T ، L/C ، D/P ، Western Union
القدرة على العرض 50000 متر شهريًا

اتصل بي للحصول على عينات مجانية وكوبونات

الـ (واتس اب):0086 18588475571

wechat: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
وزن 460 جم/متر مربع سماكة 0.41 مم
لون أزرق / أسود شريط نسج تيل نسج
عرض 1M/1.3M/1.5M/1.52M/1.55M طلاء البولي يوريثان
إبراز

fireproof PU coated fiberglass fabric,high temperature resistant fiberglass fabric,460gsm PU coated fiberglass fabric

,

high temperature resistant fiberglass fabric

,

460gsm PU coated fiberglass fabric
اترك رسالة
منتوج وصف

Suntex provides specially formulated polyurethane polymer coated fiberglass fabrics which can withstand temperature up to 1800C for short bursts. It has very good abrasion resistance and good resistance to oils and solvents.

Suntex provides one-sided/double-sided polyurethane coated fiberglass fabrics with many colors and widths. It has excellent fire resistance and good mechanical properties for make-up.



Main applications

-Fabric air distribution ducts.

-Fabric ductwork connector.

-Fire doors & Fire curtains.

-Welding/fir blankets.

-Other fire and smoke control systems.



BASE FABRIC Base fabric style No. GF430P
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. PU21A-2006
Coating Fire retardant, high performance, blue/black polyurethane on both sides
Weight 460 ± 20 g/m2 13.5 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.41 ± 0.03 mm 0.017 ± 0.0012 inch ASTM D1777-96
Color Blue/Black
Fire resistance M0 approvals NF92507
Temp resistance

Glass fabric up to 5500C (10000F)

Polyurethane coating up to 1800C (3560F

Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 0Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 1Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 2Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 3

Style NO. Weight Thickness Color Coating
(g/m2) (oz/yd2) (mm) (inch)
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey Double side
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White Double side
GF660S—PU113-2040 790 23 0.70 0.027 Grey Single side
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey Double side
TGF580—PU113-2019 620 18 0.75 0.0295 Grey Single side
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green Single side

Related Style

Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 4Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 5Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 6Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 7Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 8Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 9Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 10Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 11Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 12Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 13Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 14Fireproof PU Coated Fiberglass Fabric 460gsm High Temperature Resistant 15

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.



3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you



4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.



5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.



6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
